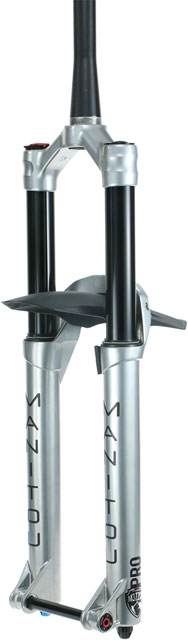

Loaded with unprecedented features, Mezzer Pro gives you the handling and control you need for the ultimate enduro ride. Built around 37mm stanchions and a Reverse-Arch lower leg design with the Hexlock SL2 axle, Mezzer Pro is the stiffest chassis in its category.
- 37mm stanchions, Reverse-Arch design and Hexlock SL2 axle for the ultimate stiffness
- Fully adjustable IRT air spring to fine tune ride feel
- Sealed MC2 damper provides a range of blow-off thresholds to satisfy any requirement with separate high-speed and low-speed adjustments
- 140mm to 180mm internally adjustable travel in 10mm increments (travel spacers included)
- Integrated flexible fender can be installed/removed by three small screws threaded into the arch of the fork
Manufacturer Manitou
Manufacturer Part Number 191-35561-A106
UPC 844171077177
Model Manitou Mezzer Pro Suspension Fork
Suspension Fork Wheel Size 29er
Suspension Fork Steerer Type Tapered
Suspension Fork Axle Size 15x110mm Thru-axle
Steerer Type
Tapered
Defined Color
Silver
Positive Spring
Air
Wheel Size
29"
Offset
44
External Adjustments
Low Speed Compression Damping
External Adjustments
High Speed Compression Damping
External Adjustments
Rebound Damping
Color
Silver
Designed for ebike
Yes
Lockout Switch
None
Negative Spring
Air
Travel (mm)
180
S.H.I.S. Stem Clamp Diameter
28.6
Steerer Tube Length (mm)
248
Weight
2032
Stanchion Diameter
37
Axle to Crown Length
594
Crown Race
40
Front Axle
15mm Thru x 110mm
Maximum Tire Width
74
Brake Type
Post Mount 180
