The Onyx SC-E1 series is based on the solid foundation of the D1 platform, but with an approach to accommodate the use of E-MTB's and their luxury of ripping both up and down the trail. Due to the added weight and mileage from an E-MTB, the SC-E1 features increased bushing overlap within the casting; providing structural stability and longevity over a longer period of time. The fork utilizes the same D1 damper, helping to maintain a lighter compression tune and supple ride that keeps riders fresh until the battery runs out.
- 67% More Bushing Overlap compared to the SC-D1
- Six clicks of low speed compression give quick access to firming up the fork for pedaling, opening for descending, and mid settings for everything in between
- Over thirty clicks of High Speed Compression give precise control for support on big hits
- Shim stack controlled rebound that is 100% dynamic; meaning, the rebound is controlled based on the speed at which oil flows through the system
- Exclusive OTT (Off The Top) adjustment feature allows riders to perfectly fine tune how the initial stroke feels without any mid/end stoke compromise
Manufacturer DVO
Manufacturer Part Number 197-9102
UPC 811551026056

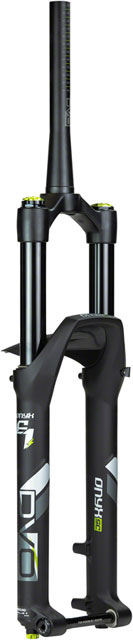

Model DVO Onyx SC-E1 Suspension Fork
Suspension Fork Wheel Size 29er
Suspension Fork Steerer Type Tapered
Suspension Fork Axle Size 15x110mm Thru-axle
Steerer Type
Tapered
Defined Color
Black
Positive Spring
Air
Wheel Size
29"
Offset
44
External Adjustments
High Speed Compression Damping
External Adjustments
Low Speed Compression Damping
External Adjustments
Rebound Damping
Color
Black
Designed for ebike
Yes
Lockout Switch
Crown
Negative Spring
Air
Travel (mm)
180
S.H.I.S. Stem Clamp Diameter
28.6
Steerer Tube Length (mm)
255
Weight
2250
Stanchion Diameter
36
Axle to Crown Length
592
Crown Race
40
Front Axle
15mm Thru x 110mm
Brake Type
Post Mount 160
