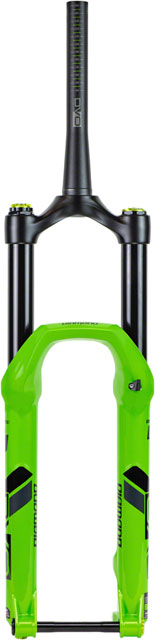

An enduro/trail fork that offers quick, dynamic tunability of the negative air spring and high/low speed compression without dropping the fork from the bike or losing any oil. Adjustable 130 - 160mm travel. Boost options are 140 - 160mm (29er) or 150 - 170mm (27.5"")
- 35mm Tapered alloy stanchions
- Fender snaps in place with one bolt
- Off The Top (OTT) allows external preload adjustment of the negative spring, for small bump compliance without sacrificing mid-stroke feel
- Top Loader Compression circuit can be removed, reconfigured and reinstalled without removing the fork from the bike or the wheel from the fork
- A compressed, closed damping cartridge bladder eliminates breakaway forces and offers small bump sensitivity
- Externally adjustable rebound, high speed and low speed damping
Manufacturer DVO
Manufacturer Part Number 1629121-X2
UPC 811551023956
Model DVO Diamond Suspension Fork
Suspension Fork Wheel Size 29er
Suspension Fork Steerer Type Tapered
Suspension Fork Axle Size 15x110mm Thru-axle
Steerer Type
Tapered
Defined Color
Green
Positive Spring
Air
Wheel Size
29"
Offset
44
External Adjustments
High Speed Compression Damping
External Adjustments
Low Speed Compression Damping
External Adjustments
Rebound Damping
Color
Green
Lockout Switch
Crown
Negative Spring
Air
Travel (mm)
160
S.H.I.S. Stem Clamp Diameter
28.6
Steerer Tube Length (mm)
255
Weight
2150
Stanchion Diameter
35
Axle to Crown Length
572
Crown Race
40
Front Axle
15mm Thru x 110mm
Brake Type
Post Mount 160
Currently Out of Stock
