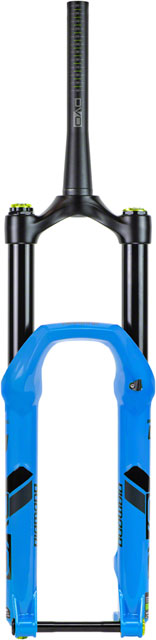

SKU: FK0648 Product qualifies for Free Shipping DVO Diamond D1 Suspension Fork - 29", 160mm Travel, 44mm Offset, 15 x 110mm, Blue


Purchase DVO Diamond D1 Suspension Fork - 29", 160mm Travel, 44mm Offset, 15 x 110mm, Blue
  • SKU: FK0648 DVO Diamond D1 Suspension Fork - 29", 160mm Travel, 44mm Offset, 15 x 110mm, Blue

    Product qualifies for Free Shipping
  • $910.99

    Usually Ships in 2-3 Days
    Contact for store availability
    Details in Stock Status below

An enduro/trail fork that offers quick, dynamic tunability of the negative air spring and high/low speed compression without dropping the fork from the bike or losing any oil. Adjustable 130 - 160mm travel. Boost options are 140 - 160mm (29er) or 150 - 170mm (27.5"")

  • 35mm Tapered alloy stanchions
  • Fender snaps in place with one bolt
  • Off The Top (OTT) allows external preload adjustment of the negative spring, for small bump compliance without sacrificing mid-stroke feel
  • Top Loader Compression circuit can be removed, reconfigured and reinstalled without removing the fork from the bike or the wheel from the fork
  • A compressed, closed damping cartridge bladder eliminates breakaway forces and offers small bump sensitivity
  • Externally adjustable rebound, high speed and low speed damping
Manufacturer  DVO
Manufacturer Part Number  1629122-X2
UPC  811551023963
Model  DVO Diamond Suspension Fork
Suspension Fork Wheel Size  29er
Suspension Fork Steerer Type  Tapered
Suspension Fork Axle Size  15x110mm Thru-axle
Steerer Type
Tapered
Defined Color
Blue
Positive Spring
Air
Wheel Size
29"
Offset
44
External Adjustments
High Speed Compression Damping
External Adjustments
Low Speed Compression Damping
External Adjustments
Rebound Damping
Color
Blue
Lockout Switch
Crown
Negative Spring
Air
Travel (mm)
160
S.H.I.S. Stem Clamp Diameter
28.6
Steerer Tube Length (mm)
255
Weight
2150
Stanchion Diameter
35
Axle to Crown Length
572
Crown Race
40
Front Axle
15mm Thru x 110mm
Brake Type
Post Mount 160
