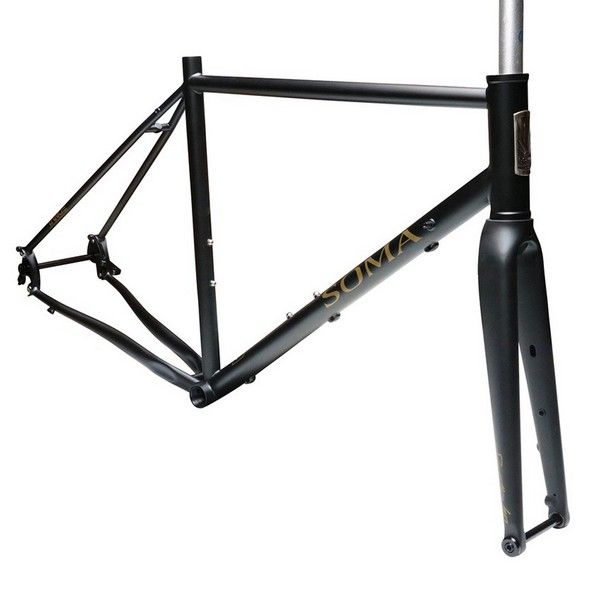

- Extra large diameter, thin-wall Tange Prestige chromoly coupled with modern touches like thru-axles and compact geometry give this frame increased power transfer and road feel while still delivering a composed and plush ride at all speeds. The re-designed geometry combines a comfortable higher stack with a shorter wheelbase that rewards skillful riders.
- Tange Prestige heat-treated double butted CrMo steel
- Extra oversized downtube and chainstays for greater pedaling stiffness
- Ovalized top tube for increased lateral stiffness and vertical compliance
- Size specific tubing (Larger diameter downtubes on the larger sizes)
- Replaceable modular dropouts (12 x 142mm bolt-on thru-axle, fits flat mount disc brake)
- BSA threaded bottom bracket shell
- Rear rack and fender mounts
- Max tire size: 700x32c with fenders
- Two water bottle boss sets
- Seat collar: 29.8 or 30.0mm
- Fork features: Carbon fiber, 43mm rake (48mm on size 48 and 52cm). Fits 700x32 tires with fenders. 12 x 100mm QR thru-axle, flat mount brake compatible. Tapered alloy steerer with internal cable routing.
Manufacturer Soma
Manufacturer Part Number 900237
UPC 0849430056153
Model Soma Smoothie HP Road Frameset
Model
Smoothie Hp
Size
54cm
Seat Tube (c-t)
500mm
Top Tube (effective, C-c)
545mm
Chainstay
415mm
Head Angle
73 Deg
Seat Angle
74.5 Deg
Headset
Zs44/28.6 / Ec44/40
Bottom Bracket
68mm
Seatpost
27.2mm
Front Derail
28.6mm
Dropout
12x142mm Ta/12x100mm Ta
