The award winning 36 continues its all-mountain domination with a reinforced chassis to handle the increased loads of eMTB and World Cup EDR-E racing. Available in both trail-focused GRIP X and gravity-focused GRIP X2 damper options.

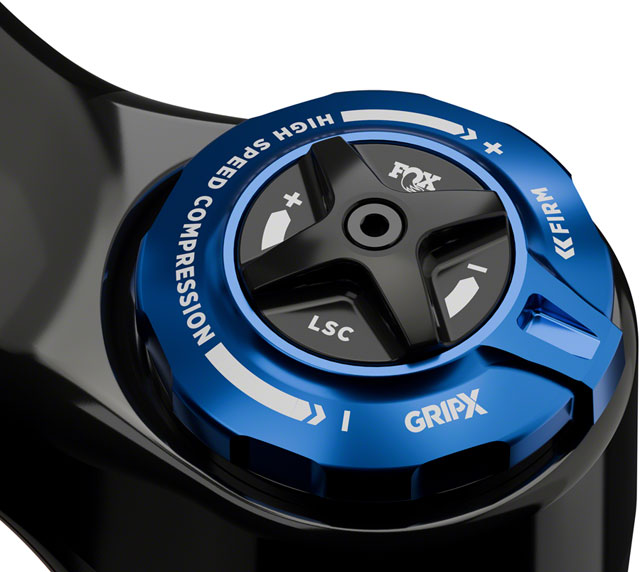

- GRIP X damper exudes exemplary descent performance, refined for less weight, easier set up and an easy access firm mode for pedaling efficiency
- Generative design-assisted lower leg arch shape increases torsional stiffness by 20%, while reducing overall material
- Additional 30mm bushing overlap than the prior model 36, reduces chassis friction, increasing stiffness and boosting performance
- New compliant FLOAT EVOL air spring design allows for a slight misalignment under load, reducing chassis friction noticeably
- Lower leg bypass channels were relocated 90° inboard to a lower stress area, reducing dynamic friction under bending forces
- Double-butted stanchion (on damper side) shaves weight, helping us achieve goal of zero weight increase

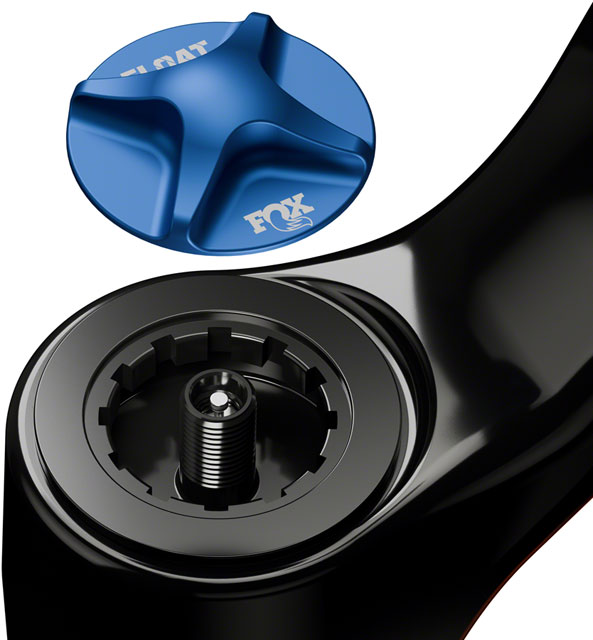

- New air spring top cap for easier air volume adjustments, removable with cassette tool (Sold separately)
- Redesigned bleeders are sleeker and easier to operate
- Kabolt X axle shaves grams while increasing torsional stiffness via a sleeveless, single-sided pinch bolt design
- Kashima
Manufacturer FOX
Manufacturer Part Number 910-21-348
UPC 821973504155

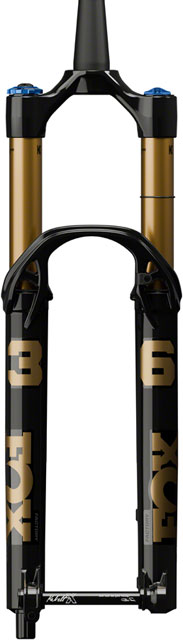

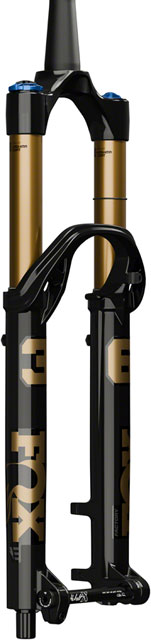

Model FOX 36 E-Optimized Factory GRIP X/X2 Suspension Fork
Suspension Fork Wheel Size 29er
Suspension Fork Steerer Type Tapered
Suspension Fork Axle Size 15x110mm Thru-axle
Steerer Type
Tapered
Lockout Switch
Crown
Brake Type
Post Mount 200
Negative Spring
Air
Travel (mm)
160
Offset
44
Axle to Crown Length
576
Front Axle
15mm Thru x 110mm
Maximum Tire Width
66
S.H.I.S. Stem Clamp Diameter
28.6
Color
Shiny Black
Crown Race
40
Wheel Size
29"
Designed for ebike
Yes
External Adjustments
High Speed Compression Damping
External Adjustments
Low Speed Compression Damping
External Adjustments
Rebound Damping
Defined Color
Black
Positive Spring
Air
keyword search
FOX Model Year 26 , FOX MY26
Stanchion Diameter
36
Steerer Tube Length (mm)
264
