- BMX-inspired geometry focused on nimble maneuverability and predictable climbing and descending
- Short 406 mm chainstay length supports manuals, quick line adjustments, and an active riding style100 percent 4130 chromoly rigid 29 inch frame construction for durability and ride feel
- Butted top tube, down tube, and seat tube balance strength and weight
- Investment cast yoke design enables extra short chainstays and clearance for tires up to 2.5 inches
- Straight seat tube allows full dropper post insertion to maximize available drop
- External brake, derailleur, and dropper post routing with removable hardware simplifies assembly and maintenance
- Multiple mounting points support bottles, accessories, and ISCG compatibility
- Frame kit includes sealed FSA Orbit ITA integrated headset, UDH derailleur hanger, and Boost thru-axle
Manufacturer Fairdale
Manufacturer Part Number FDFR-2540-BK
UPC 630950942046

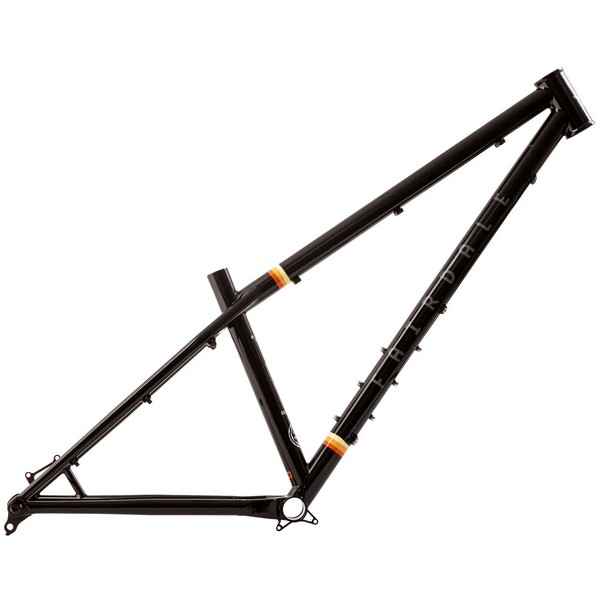

Model Fairdale Elevator Frame 29" S
Model
Elevator
Size
S
Seat Tube (c-t)
360mm
Top Tube (effective, C-c)
600mm
Chainstay
406mm
Head Angle
65.5 Deg
Seat Angle
76 Deg
Headset
Is42/28.6 / Is52/40
Bottom Bracket
73 Mm
Seatpost
31.6mm
Wheel Size
29"
Dropout
12 X 148mm
