- DH38 Race has already won multiple world championships
- Downhill fork with 38mm stanchions, bind-free bushings, and SKF seals
- TTX18 damper's 18mm piston provides optimal small bump sensitivity
- 15 clicks of low speed compression and low speed rebound
- 5 clicks of high-speed compression
- Twin piston, three chamber air spring system, isolated from the upper tubes to reduced head build up
- Total Tune Spring Curve System (TTSC) allowing total air spring tuning from the initial movement through to the bottom out
- 74mm post-mount disc brake mount
- 20x110mm DH Boost thru-axle
- Max tire size: 29x2.8" or 27.5x3.0"
- E-Bike approved
Manufacturer Ohlins
Manufacturer Part Number FDMTB 3820 2110

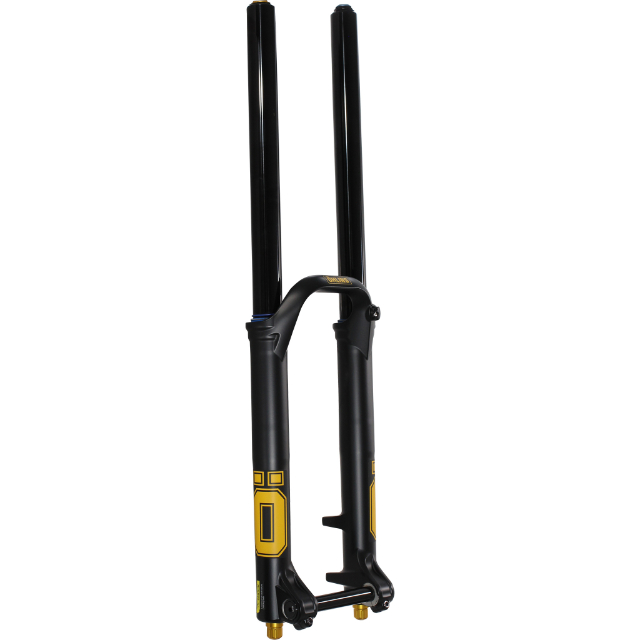

Model Ohlins DH38 Race Fork
Suspension Fork Wheel Size 27Five
Suspension Fork Axle Size 15x110mm Thru-axle
Model
Dh38 Race
Wheel Size
29"/27.5"
Steerer (stem/race)
Steerer Sold Separately
Offset
Crowns Sold Separately
Travel
200mm
Spring Type
Air
Brake Mount
Disc Only (pm-200)
Dropout
20x110mm Boost
Weight
2820g (with Crown And Steerer)
Color
Black
