- TTX2 refers to two air chambers meaning greater air volume. Provides a more linear spring rate
- TTX Twin tube design for consistent damping performance on all types of terrain
- Extra bushing overlap for improved side load management
- Specific wiper seal and air sleeve lubrication reduce friction
- External rebound, low-speed and high-speed compression adjustment
- Climb mode to reduce suspension movements during climbs
- Includes (2) air spring volume spacers
- Mounting hardware sold separately (spherical bearings reduce friction on the shock during side loads for improved small bump sensitivity, optional on widths up to 22mm)
- Includes IGUS bushings for the 15mm shaft eyelets top and bottom
Manufacturer Ohlins
Manufacturer Part Number MTBM 1982

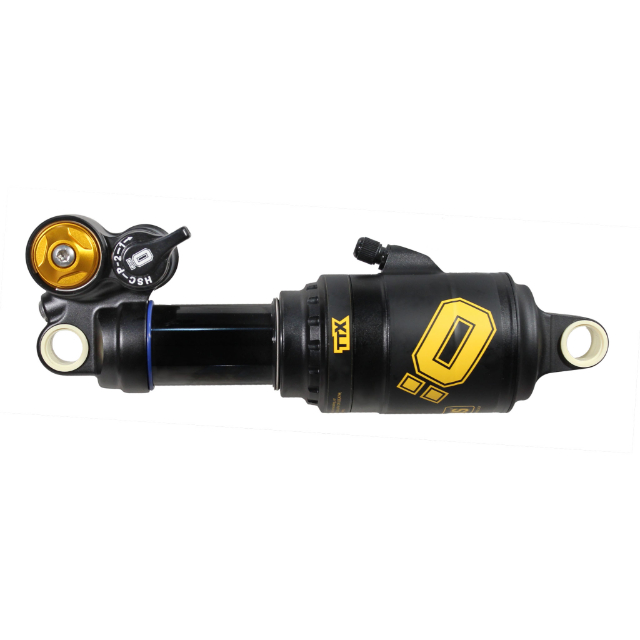

Model Ohlins TTX2Air Shock
Model
Ttx2 Air
Stroke
40/42.5/45mm
Eye-eye
190mm
