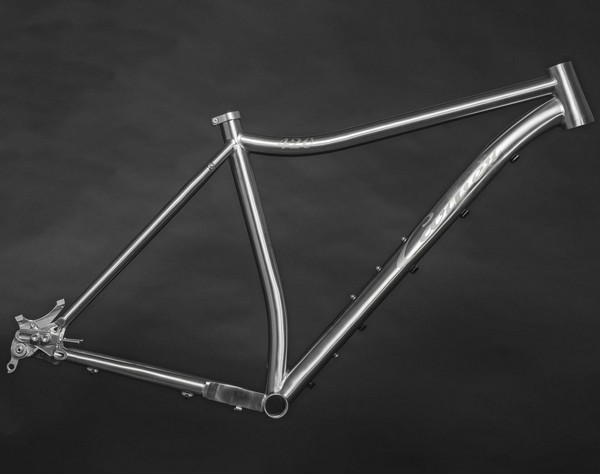

The Ti 420 is our all-purpose trail frame, capitalizing on short chainstays and designed with more versatility than any other similar frame. Ti softens the blows and drops the weight, while 420mm chainstays ensure snappy handling.
Our most recent iteration of the frame features clamp-on cable guides on the underside of the downtube for a cleaner look and the ability to customize the number of housing sections you're using. And of course, there is a port for internal dropper routing. Each frame comes with the rider's choice of compatible Paragon Machine Works sliding dropout inserts and a thru-axle, if applicable.
Want to try 27.5 or 27.5+? No problem! The 420 has a slightly higher-than-average bottom bracket height, allowing it to handle 27.5 wheels without bringing the bottom bracket height too low.
If you're looking to run fatter tires like 29 x 2.8 or 3", check out our Gnarvester 29+ frame!
Is there a little detail you don't like? Want to tweak the geometry a bit? Have a cool idea for a frame? As with all our titanium frames, customization is no problem. For an extra $300 we can edit this frame to your liking, or start completely from scratch. Contact us any time and let us know what you're looking for. We can help you design a frame and give you an accurate timeline for how long it will take to build.
- 3/2.5 seamless titanium
- Brushed finish with subtle bead-blasted logo
- 12 sizes from 14" to 25"
- 4.8 pounds in medium size (with thru-axle)
- Clearance for 29 x 2.4" or 27.5 x 3" tires
- Rack/fender mounts
- 2x triple cage mounts
- 44/56 headtube
- 31.6mm seatpost
- 34.9mm seatpost clamp
- Internal dropper post compatible
- 148mm thru-axle
- Belt drive compatible

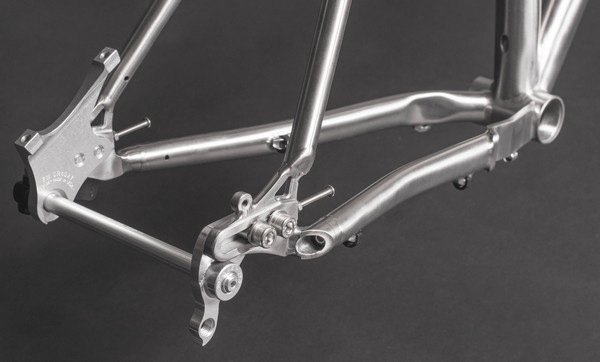

- Sliding dropouts with 20mm of adjustment
- 73mm threaded bottom bracket
- Under-the-downtube cable routing with bolt-on cable clamps
- 5-year warranty to original owner, lifetime crash replacement
