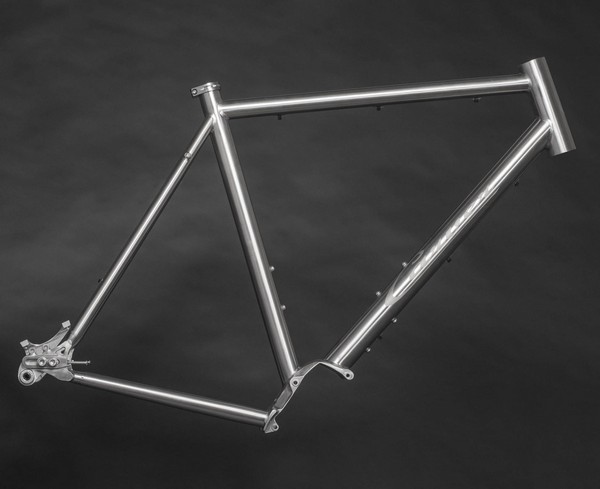

Our All-Road frame was designed for the rider that wants to travel anywhere. Designed for long comfortable days in the saddle with stable relaxed geometry. Built to last generations, with versatility to allow for a wide range of drivetrain, wheel, and fork options. With tire capacity up to 45 mm, it will handle any terrain, paved or unpaved.
The All-Road features a comfortably low bottom bracket, longer headtube, and size specific chainstays for stability. Braze-ons include rack mounts, fender mounts, and three water bottle mounts (two on the 44 and 47cm). Thanks to a brushed finish, this frame will be pleasing to the eye and a cinch to maintain for generations with a simple Scotchbrite pad. And you'll be rolling 'til your dying day with our lifetime warranty and crash replacement policy!
With 11 sizes ranging from 44cm to 66cm, there is an All-Road frame for nearly every rider. Each frame comes with the rider's choice of Paragon sliding dropout inserts which will allow for a wide variety of axle types, including thru-axle and Rohloff.
Wanted to use rim brakes? Travel couplings? No worries, the All-Road is completely customizable with applicable upcharges and lead times.
The All-Road is well-suited to gravel riding, but if that's your primary use then check out our purpose-built gravel frame, the Conestoga.

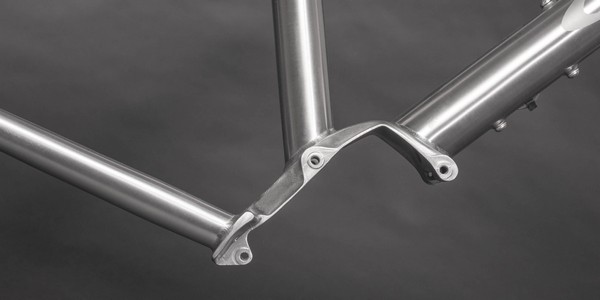

Due to the immense popularity of the Pinion Internal Gearbox, our production frames equipped with the Pinion-compatible cradle are no longer custom-only! We usually have most common sizes available for same-day shipping.
- 3/2.5 seamless titanium
- Brushed finish with subtle bead-blasted logo
- 11 sizes from 44cm to 66cm
- 4.7 pounds in medium size (with thru-axle)
- Clearance for 700 x 45 and 650b x 50 tires (excl. 44cm and 47cm)
- Rack/fender mounts
- 3x bottle cage mounts
- 44mm headtube
- 31.6mm seatpost

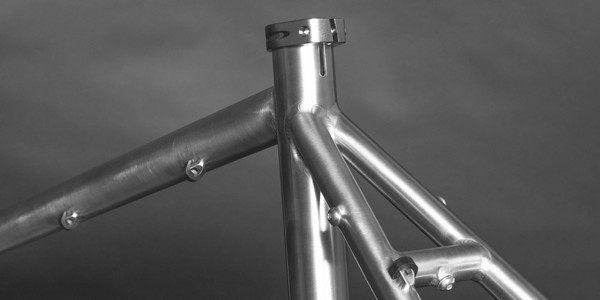

- 34.9mm seatpost clamp
- No internal dropper post compatibility
- 142mm thru-axle or 135mm quick-release
- Belt drive compatible

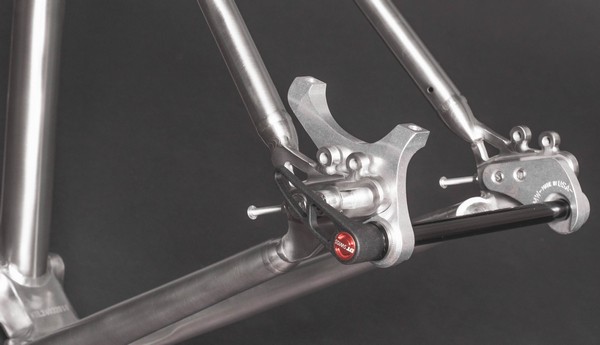

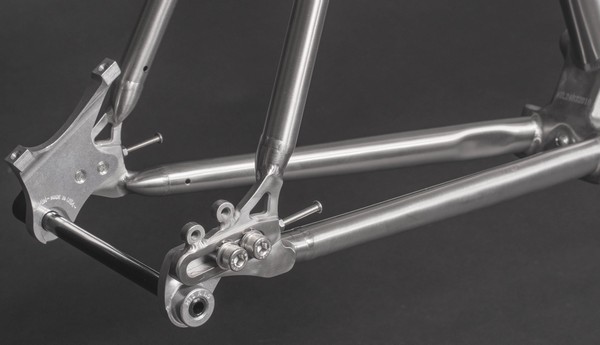

- Sliding dropouts with 20mm of adjustment
- 68mm threaded bottom bracket
- Under-the-downtube cable routing with bolt-on cable clamps
- Lifetime warranty and crash replacement
