XC courses are more technical than ever with the latest longer-travel XC bikes more than capable. With a stout full-width stance, increased travel and tire clearance and svelte sub-1500g weight, the new 34 SL Factory suspension fork is built to exceed the demands of modern XC and downcountry. Features Kashima Coating on upper tubes for added smoothness and durability
- Full-width 34mm chassis with aggressive generative design-aided arch and crown for 17% increase in stiffness and 10mm increase in travel over 34 SC, at only 3% weight increase
- 20mm increased bushing overlap for reduced friction and greater stiffness with no increase in axle-to-crown length (compared to 34 SC)
- Longer air spring than 34 SC with larger negative volume mirrors 34 LT’s supple initial stroke and 34 SC’s supportive mid and end stroke
- Double-butted damper side stanchion for weight savings
- Lower Leg Bypass Channels relocated 90° inboard for improved bushing loading and reduced dynamic friction
- Features an incredibly light and short travel-specific GRIP SL Damper that not only saves weight, but provides an unparalleled ride feel in its class

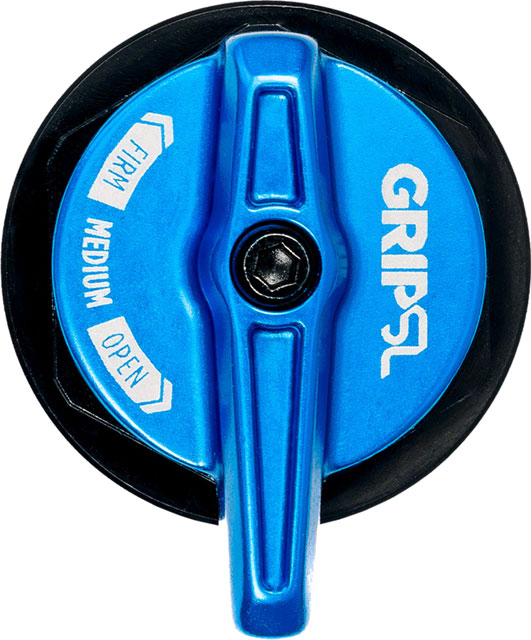

- Three on-the-fly compression damping positions: Open, Medium, Firm

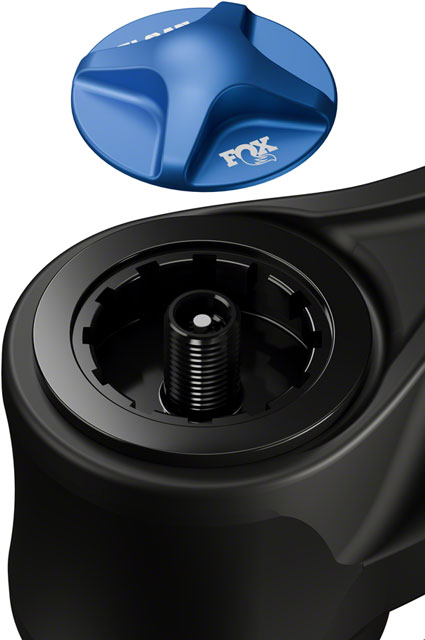

- Air spring top cap uses cassette tool for easy volume adjustments
Manufacturer FOX
Manufacturer Part Number 910-21-365
UPC 821973504261

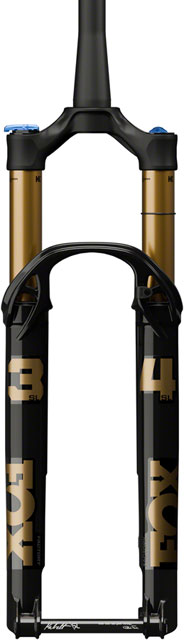

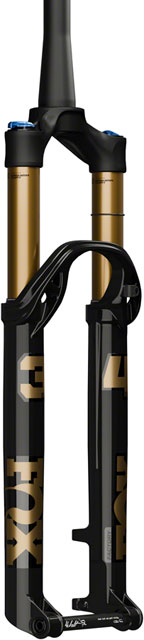

Model FOX 34 SL Factory Suspension Fork
Suspension Fork Wheel Size 29er
Suspension Fork Steerer Type Tapered
Suspension Fork Axle Size 15x110mm Thru-axle
Steerer Type
Tapered
Lockout Switch
Crown
Brake Type
Post Mount 180
Negative Spring
Air
Travel (mm)
130
Offset
44
Axle to Crown Length
540.5
Front Axle
15mm Thru x 110mm
Maximum Tire Width
63.5
S.H.I.S. Stem Clamp Diameter
28.6
Color
Shiny Black
Crown Race
40
Wheel Size
29"
External Adjustments
High Speed Compression Damping
External Adjustments
Low Speed Compression Damping
External Adjustments
Rebound Damping
Defined Color
Black
Positive Spring
Air
keyword search
FOX Model Year 26 , FOX MY26
Stanchion Diameter
34
