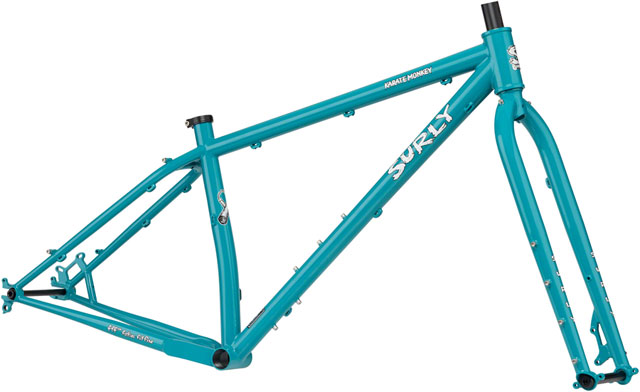

The Karate Monkey features updated, progressive trail geometry, our custom trumpet tubeset and Surly’s Gnot-Boost rear dropout system. Available in a variety of colors, with multiple drivetrain and wheel size configurations.

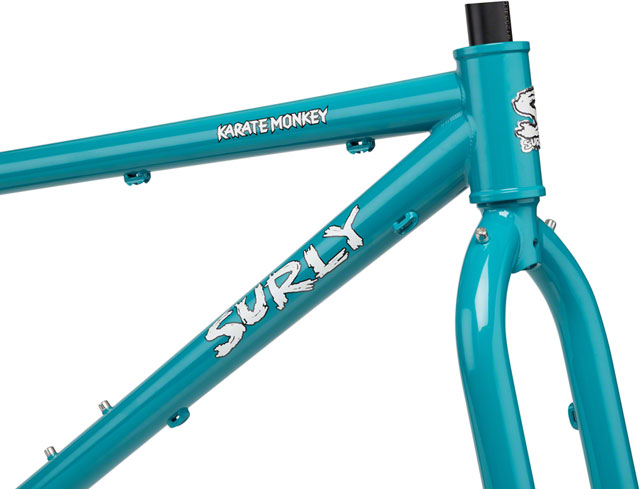

- 100% Surly Chromoly steel frame and fork; double-butted main triangle and 44mm headtube
- The tubeset uses the same trumpet tubes found on Instigator 2.0 frame

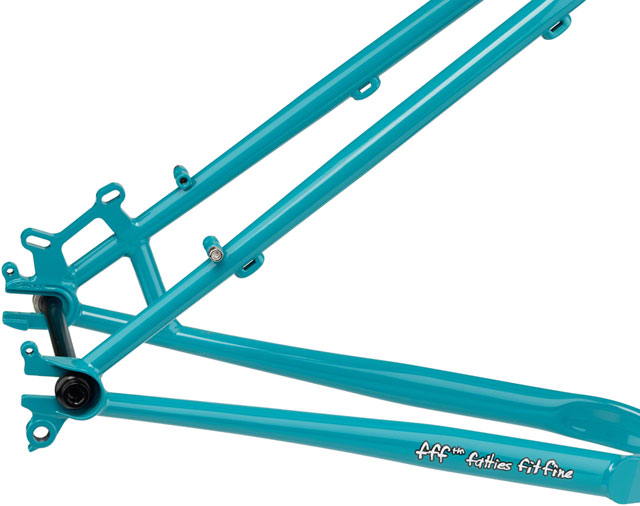

- Adjustable rear dropouts with 145mm Gnot-Boost spacing. Works with 142, 148 12mm thru, as well as 135mm w/ 10/12 washer

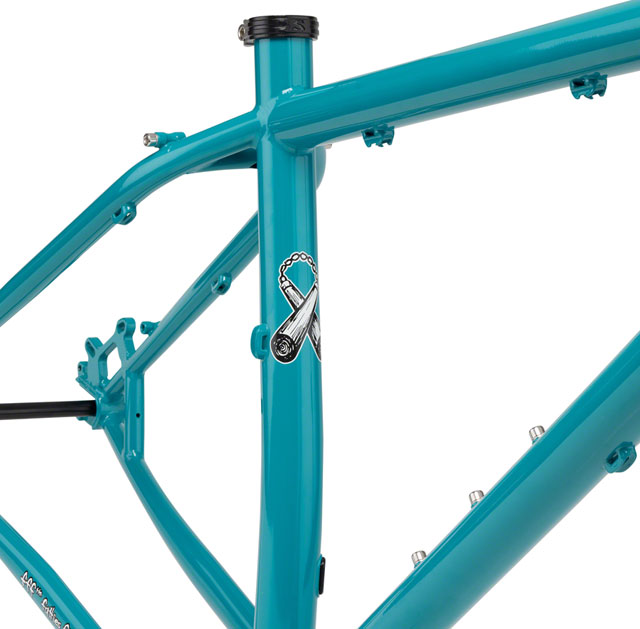

- Internal dropper seatpost routing with 30.9mm seat tube ID
- Clearance for 29 x 2.55 or 27.5 x 3 tires
Manufacturer Surly
Manufacturer Part Number 04-002074
UPC 708752428232
Model Surly Karate Monkey Frameset - Lost at Sea
Rear Axle
12mm Thru x 145mm
Brake Type
Disc
TT (Effective)
560
Fork Type
Rigid
Fork Material
Steel
Frame Material
Steel
Frame Type
Rigid
Front Axle
15mm Thru x 110mm
Color
Lost at Sea Blue Blue
Mfg Size
X-Small
Platform
Karate Monkey
Wheel Size
27.5"
Wheel Size
29"
Defined Color
Blue
