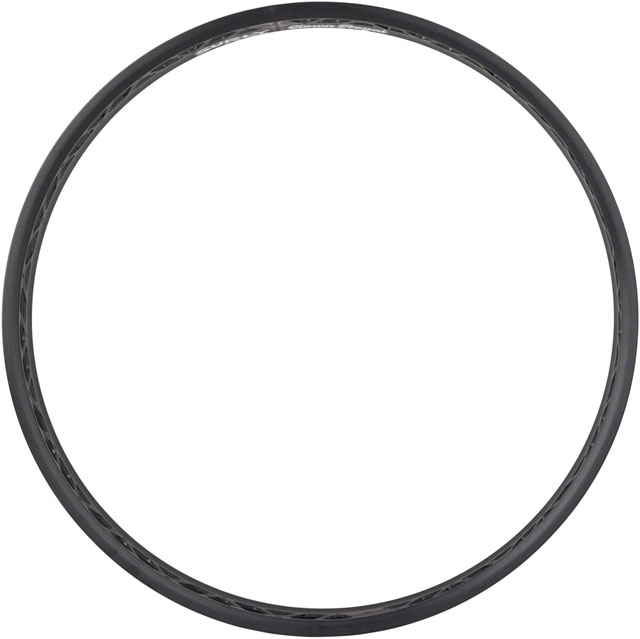

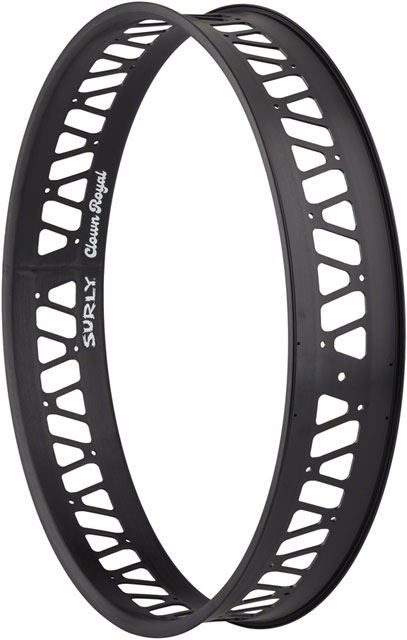

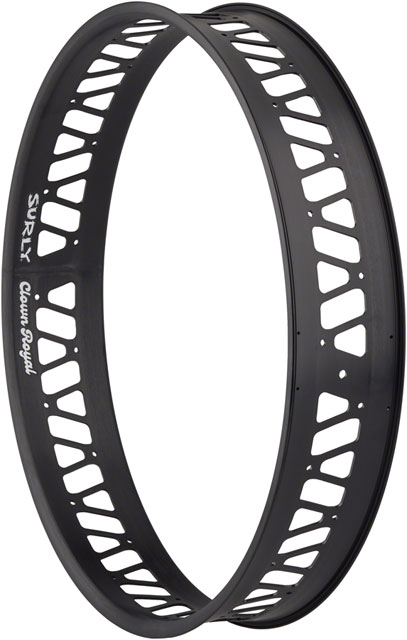

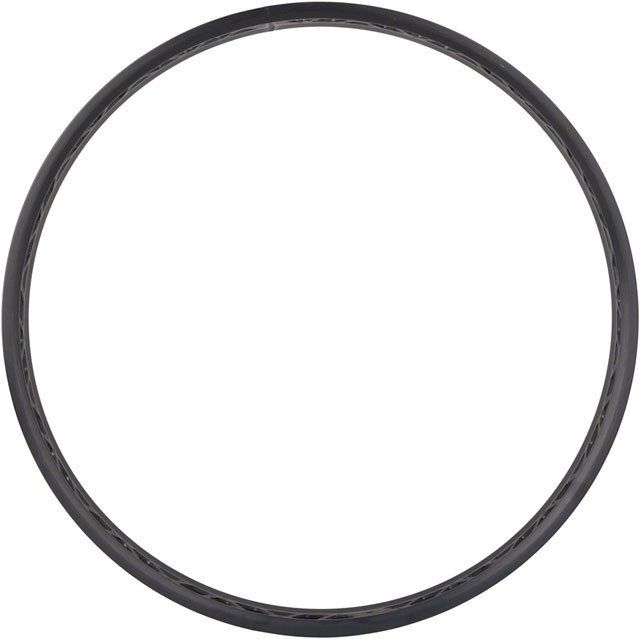

The Surly Clown Royal is a 100mm-wide fat bike rim designed exclusively for the 6.2" Molenda tire. Its 24-inch diameter maxes out tire volume for Moonlander’s frame for ultimate flotation and traction. This rim is high in durability and low in maintenance thanks to a tubeless ready rim bed for easier tubeless tire setup with a no-stretch rim strip, plus tubeless rim tape. The ramped cross-section approaching the Bead Seat stabilizes the tire bead and casing for easy setup.
- Disc Brake use only
- Not compatible with any rim brake systems
- Tubeless Tape Kit (Sold Separately)
- Moonlander OE support part sold without aftermarket packaging
Manufacturer Surly
Manufacturer Part Number 04-002131
UPC 708752437517
Model Surly Clown Royal
Rim Diameter 24inch
Rim Type Disc Brake Tubeless Compatible
Spoke Hole Count 32 hole
Brake Compatibility
Disc Only
Rim Width (External)
100
Manufacturer Spec ERD (mm)
500
Material
Alloy
Valve
Presta
Valve Length
Med 41-55mm
Color
Black
Wheel Size
24"
Width
100
Defined Color
Black
ISO Diameter
507 / 24" BMX
Eyelets
None
Rim Joint
Welded
Hub Drilling
32
Rim Depth (mm)
14
Rim Material
Alloy
Tire Type
Tubeless Ready Clincher
Rim Center Offset (mm)
18.5
