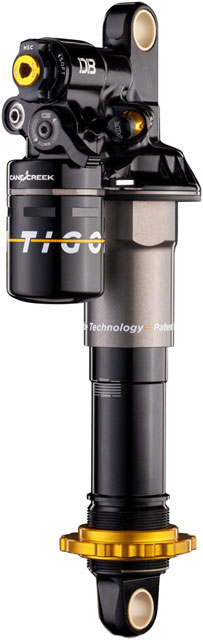

The Tigon rear shock utilizes Cane Creek's DB Twin Tube design that combines the sensitivity of a coil shock with the tunable support of an air spring – to fuel your most creative and playful riding yet. Tigon tracks the ground and grips like a coil shock, but thanks to RAMP Tube Technology, it also offers the mid-stroke and bottom out support that is often required from an air shock. Both of these benefits are now delivered in an entirely new layout that better withstands side-loading and buckling forces that can harm traditional coil shocks. Want a shock that provides sensitivity and grip? Tigon delivers.
- RAMP Tube Technology allows riders to add 20-35% more progression than typical coil shocks (30psi max)
- Using a basic shock pump, riders can now tune the support of their coil shock by adding pressure to the RAMP Tube. This added air chamber increases the progression of the shock and gives all the mid-stroke and bottom out support that you may want
- Significantly increased strength due to the bracing provided by RAMP Tube
- Main coil spring allows Tigon to offer incredible grip and ground-tracking sensitivity
- Coil sensitivity with air support and DB Twin Tube damping technology
- Available adjustments include: RAMP Tube, independent high and low-speed compression, low-speed rebound, 2 position Climb Switch
- Compatible with VALT Coil springs, sold separately
Manufacturer Cane Creek
Manufacturer Part Number BDD0030
UPC 840226089690
Model Cane Creek Tigon Rear Shock
Stroke (mm)
65
Lockout Switch
Climb Switch
Metric
Yes
Weight
210
Eyelet Diameter (mm)
12.7
External Adjustments
High Speed Compression Damping
External Adjustments
Low Speed Compression Damping
External Adjustments
Rebound Damping
External Adjustments
Coil Preload
Positive Spring
Coil
Eye to eye length (mm)
230
